Auger Drive Units

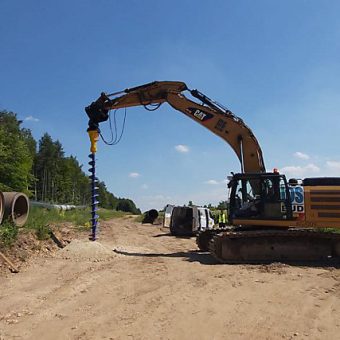

ADU 2000

Carrier weight class ¹: 30 t - 55 t

Unit diameter: 660 mm

Max. drilling diameter (Soil class 1–3): 1 600 mm

Max. torque ⁴: 33,5 kNm

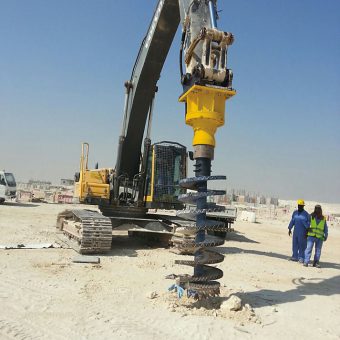

ADU 1500

Max. drilling diameter (Soil class 1–3): 1 500 mm

Nominal power: 120 kW

Optimum oil flow ³: 200 l/min - 300 l/min

Carrier weight class ¹: 18 t - 40 t

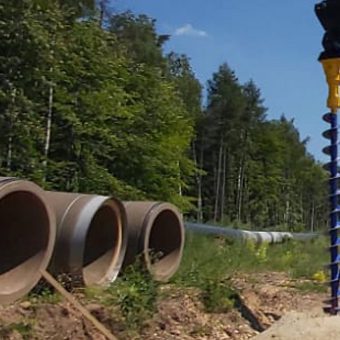

ADU 600

Nominal power: 65 kW

Optimum oil flow ³: 75 l/min - 150 l/min

Max. drilling diameter (Soil class 6–7)⁴: 500 mm

Unit length: 1 260 mm

ADU 450

Optimum oil flow ³: 75 l/min - 150 l/min

Unit diameter: 360 mm

Max. drilling depth: 3 500 mm

Max. drilling diameter (Soil class 1–3): 400 mm

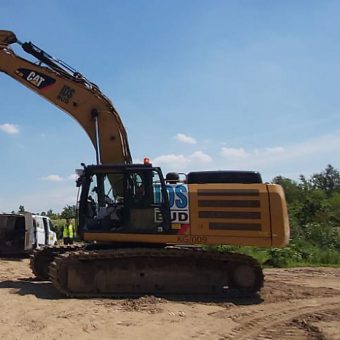

ADU 250

Max. drilling diameter (Soil class 1–3): 500 mm

Max. torque ⁴: 5,2 kNm

Carrier weight class ¹: 8 t - 15 t

Oil flow, max: 85 l/min

ADU 100

Oil flow, max: 90 l/min

Rotational speed: 50 rpm - 110 rpm

Max. drilling depth: 3 500 mm

Max. drilling diameter (Soil class 4–5): 300 mm

ADC 80+

Speed range: 35 rpm - 89 rpm

Oil flow: 70 l/min - 180 l/min

Unit diameter: 286 mm

Drilling range: 200 mm - 800 mm

ADC 70+

Drilling range: 200 mm - 700 mm

Shaft size: 75 mm

Unit length: 806 mm

Unit diameter: 286 mm

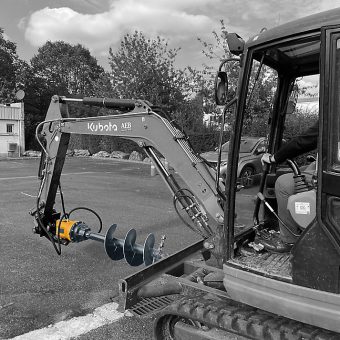

ADC 55

Shaft form: Round

Drilling range: 200 mm - 600 mm

Torque range: 3 207 Nm - 5 211 Nm

Unit diameter: 286 mm

ADC 45

Unit length: 616 mm

Torque range: 2 916 Nm - 4 739 Nm

Shaft form: Round

Unit diameter: 253 mm

ADC 35

Torque range: 2 326 Nm - 3 780 Nm

Operating pressure: 140 bar - 260 bar

Oil flow: 40 l/min - 85 l/min

Shaft size: 65 mm

ADC 30

Oil flow: 35 l/min - 75 l/min

Shaft form: Round

Speed range: 48 rpm - 103 rpm

Carrier weight class ¹: 2,5 t - 4 t

ADC 25

Shaft size: 65 mm

Operating pressure: 140 bar - 240 bar

Unit length: 584 mm

Torque range: 1 544 Nm - 2 645 Nm

ADC 20

Shaft form: Round

Torque range: 1 245 Nm - 2 134 Nm

Unit length: 584 mm

Oil flow: 25 l/min - 55 l/min
