Premium Hydraulic Breaker Range

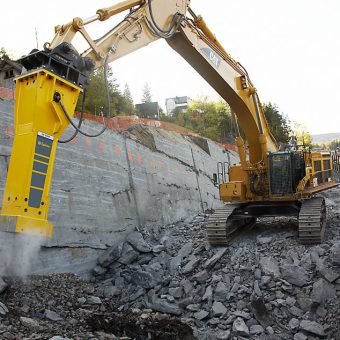

Hydraulic Breaker HB 10000 DP

Hydraulic input power, max: 159 kW

Oil flow: 450 l/min - 530 l/min

Carrier weight class ¹: 85 t - 140 t

Working length of tool: 800 mm

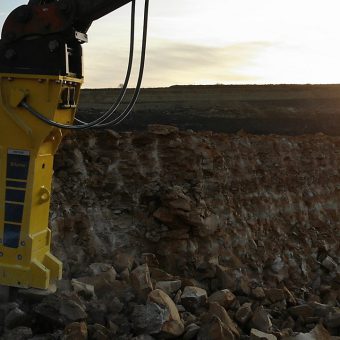

Hydraulic Breaker HB 7000

Impact rate: 280 blows/min - 450 blows/min

Service weight ²: 7 000 kg

Oil flow: 360 l/min - 450 l/min

Sound power level, guaranteed ³: 121 dB(A)

Hydraulic Breaker HB 5800

Service weight ²: 5 800 kg

Sound power level, guaranteed ³: 121 dB(A)

Working length of tool: 815 mm

Hydraulic input power, max: 117 kW

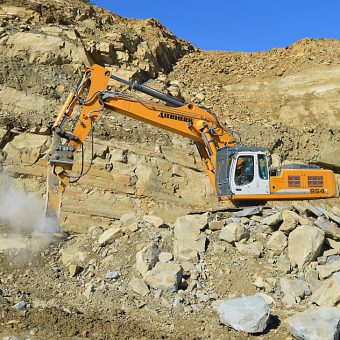

Hydraulic Breaker HB 4700

Hydraulic input power, max: 108 kW

Working tool diameter: 190 mm

Working length of tool: 790 mm

Carrier weight class ¹: 45 t - 80 t

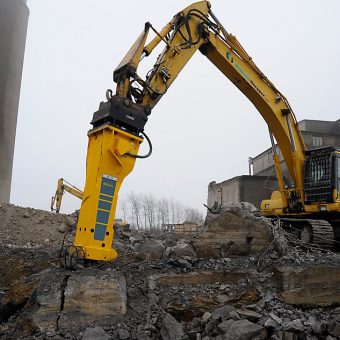

Hydraulic Breaker HB 4100

Oil flow: 250 l/min - 320 l/min

Service weight ²: 4 100 kg

Sound power level, guaranteed ³: 124 dB(A)

Operating pressure: 160 bar - 180 bar

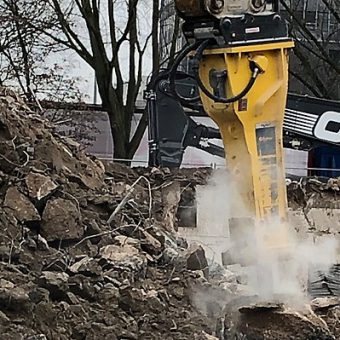

Hydraulic Breaker HB 3600

Oil flow: 240 l/min - 300 l/min

Working length of tool: 700 mm

Operating pressure: 160 bar - 180 bar

Hydraulic input power, max: 90 kW

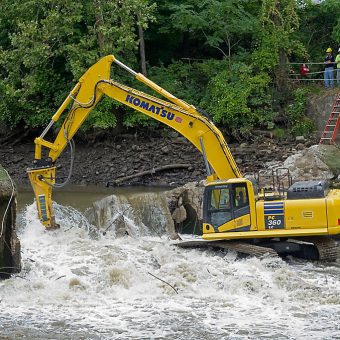

Hydraulic Breaker HB 3100

Sound power level, guaranteed ³: 120 dB(A)

Carrier weight class ¹: 32 t - 52 t

Service weight ²: 3 100 kg

Impact rate: 280 blows/min - 560 blows/min

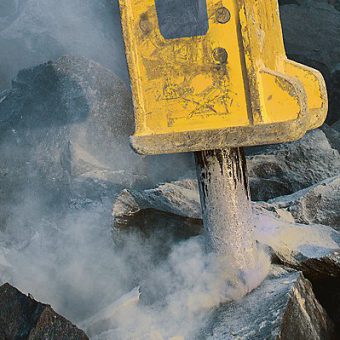

Hydraulic Breaker HB 2500

Service weight ²: 2 500 kg

Oil flow: 170 l/min - 220 l/min

Carrier weight class ¹: 27 t - 46 t

Operating pressure: 160 bar - 180 bar

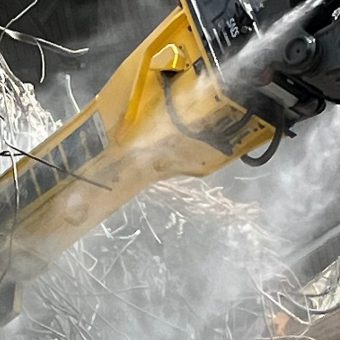

Hydraulic Breaker HB 2000

Sound power level, guaranteed ³: 120 dB(A)

Carrier weight class ¹: 22 t - 38 t

Working length of tool: 635 mm

Impact rate: 300 blows/min - 625 blows/min

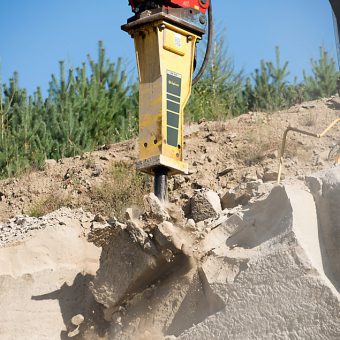

Hydraulic Breaker MB 1650

Hydraulic input power, max: 51 kW

Working length of tool: 670 mm

Operating pressure: 160 bar - 180 bar

Impact rate: 320 blows/min - 640 blows/min

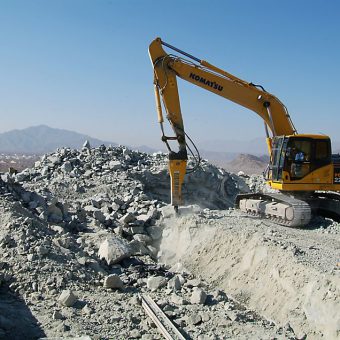

Hydraulic Breaker MB 1500

Carrier weight class ¹: 17 t - 29 t

Working length of tool: 635 mm

Oil flow: 120 l/min - 155 l/min

Service weight ²: 1 500 kg

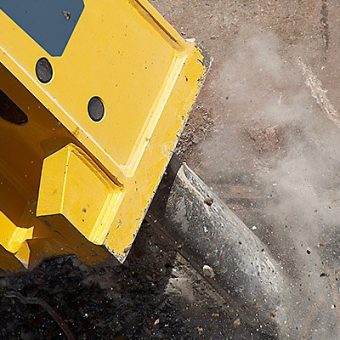

Hydraulic Breaker MB 1200

Hydraulic input power, max: 42 kW

Oil flow: 100 l/min - 140 l/min

Working length of tool: 600 mm

Service weight ²: 1 200 kg

Hydraulic Breaker MB 1000

Working tool diameter: 110 mm

Carrier weight class ¹: 12 t - 21 t

Impact rate: 350 blows/min - 750 blows/min

Hydraulic input power, max: 39 kW

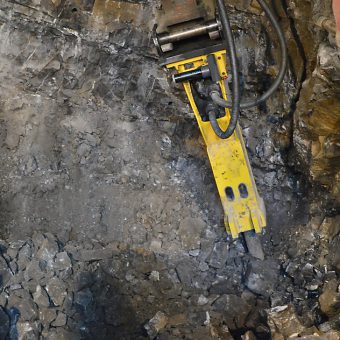

Hydraulic Breaker MB 750

Operating pressure: 140 bar - 170 bar

Working tool diameter: 100 mm

Working length of tool: 510 mm

Impact rate: 370 blows/min - 840 blows/min

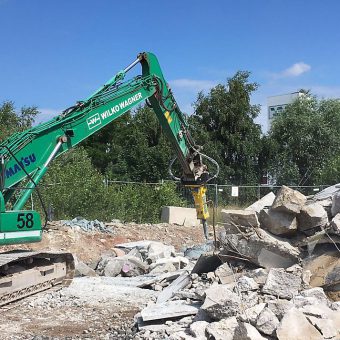

Hydraulic Breaker SB 1102

Impact rate: 550 blows/min - 850 blows/min

Carrier weight class ¹: 13 t - 24 t

Sound power level, guaranteed ³: 123 dB(A)

Working length of tool: 610 mm

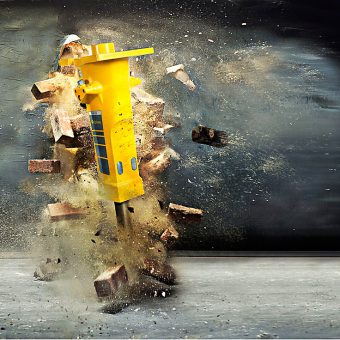

Hydraulic Breaker SB 702

Impact rate: 600 blows/min - 1 050 blows/min

Carrier weight class ¹: 10 t - 17 t

Sound power level, guaranteed ³: 122 dB(A)

Service weight ²: 720 kg

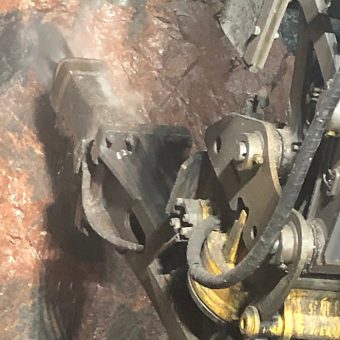

Hydraulic Breaker SB 552 T

Working length of tool: 485 mm

Carrier weight class ¹: 9 t - 15 t

Service weight ²: 557 kg

Operating pressure: 100 bar - 110 bar

Hydraulic Breaker SB 452 T

Sound power level, guaranteed ³: 122 dB(A)

Carrier weight class ¹: 6,5 t - 13 t

Working tool diameter: 95 mm

Hydraulic input power, max: 19 kW

Hydraulic Breaker SB 302 T

Impact rate: 950 blows/min - 1 250 blows/min

Oil flow: 50 l/min - 80 l/min

Working tool diameter: 80 mm

Working length of tool: 400 mm

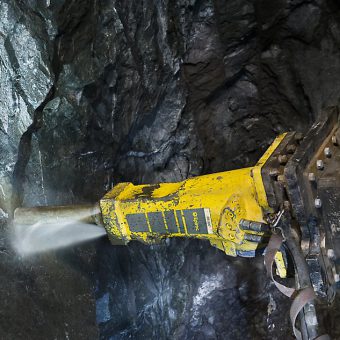

Hydraulic Breaker SB 202 Tunnel

Hydraulic input power, max: 13 kW

Service weight ²: 199 kg

Sound power level, guaranteed ³: 118 dB(A)

Working tool diameter: 65 mm

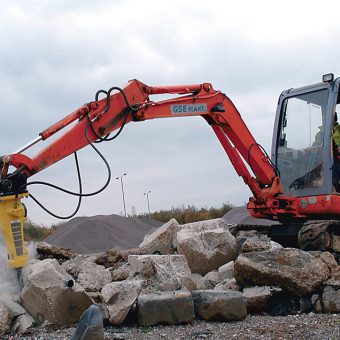

Hydraulic Breaker SB 152

Carrier weight class ¹: 1,9 t - 4,5 t

Impact rate: 850 blows/min - 1 900 blows/min

Oil flow: 25 l/min - 45 l/min

Service weight ²: 140 kg

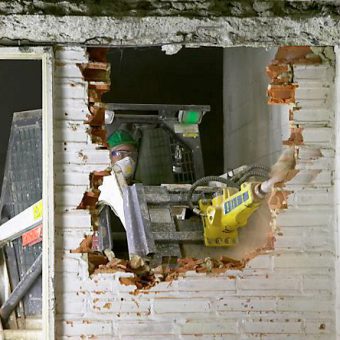

Hydraulic Breaker SB 102

Impact rate: 750 blows/min - 2 300 blows/min

Oil flow: 16 l/min - 35 l/min

Service weight ²: 90 kg

Carrier weight class ¹: 1,1 t - 3 t

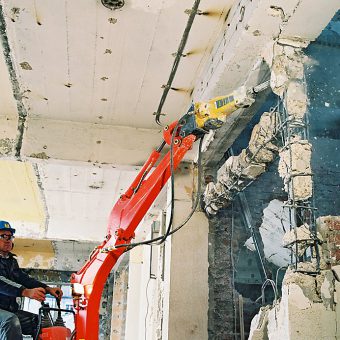

Hydraulic Breaker SB 52

Service weight ²: 55 kg

Impact rate: 750 blows/min - 1 700 blows/min

Working length of tool: 255 mm

Operating pressure: 100 bar - 150 bar
