Hinowa | Minidumpers | HS701 - WAC McCandless

HS701

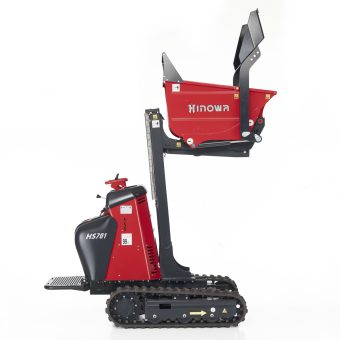

HS701 extra high-tip and self-loading dumper bed

Operating weight - diesel engine: 876 kg

Petrol engine: Honda GX390

Pistons and displacement: single-cylinder 389 cc

Max gross power: 11,7 HP - 8,7 kW@3600rpm

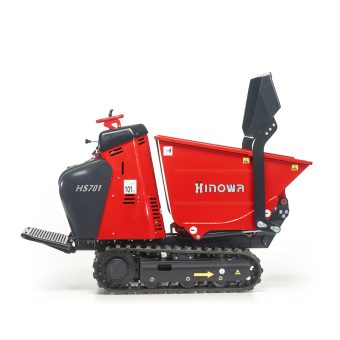

HS701 self-loading

Operating weight - diesel engine: 655 kg (fixed undercarriage) - 735 kg (widening undercarriage)

Petrol engine: Honda GX270 - GX390

Pistons and displacement: single-cylinder 270 cc (GX270) - 389 cc (GX390)

Max gross power: 8,4 HP - 6,3 kW@3600rpm (GX270) - 11,7 HP - 8,7 kW@3600rpm (GX390)

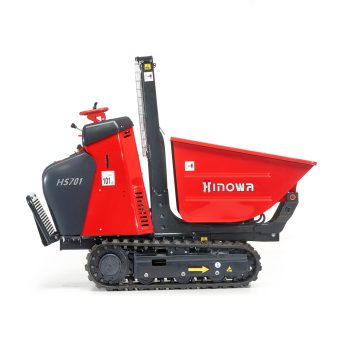

HS701 high-tip dumper bed

Operating weight - diesel engine: 660 kg (fixed undercarriage) - 740 kg (widening undercarriage)

Petrol engine: Honda GX270

Pistons and displacement: single-cylinder 270 cc

Max gross power: 8,4 HP - 6,3 kW@3600rpm

HS701 dumper bed

Operating weight - diesel engine: 580 kg (fixed undercarriage) - 660 kg (widening undercarriage)

Petrol engine: Honda GX270

Pistons and displacement: single-cylinder 270 cc

Max gross power: 8,4 HP - 6,3 kW@3600rpm

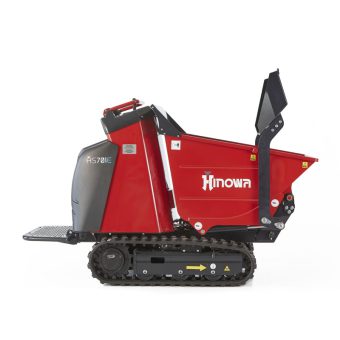

HS701E Lithium-Ion

Operating weight self-loading version: 740 kg

Lithium-ion battery: 48V, 120Ah

Battery charge: 3 kW 80-240V

Recharging time: 3 hours (100%)
